A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 1kg. – Blade thickness: 1.0mm

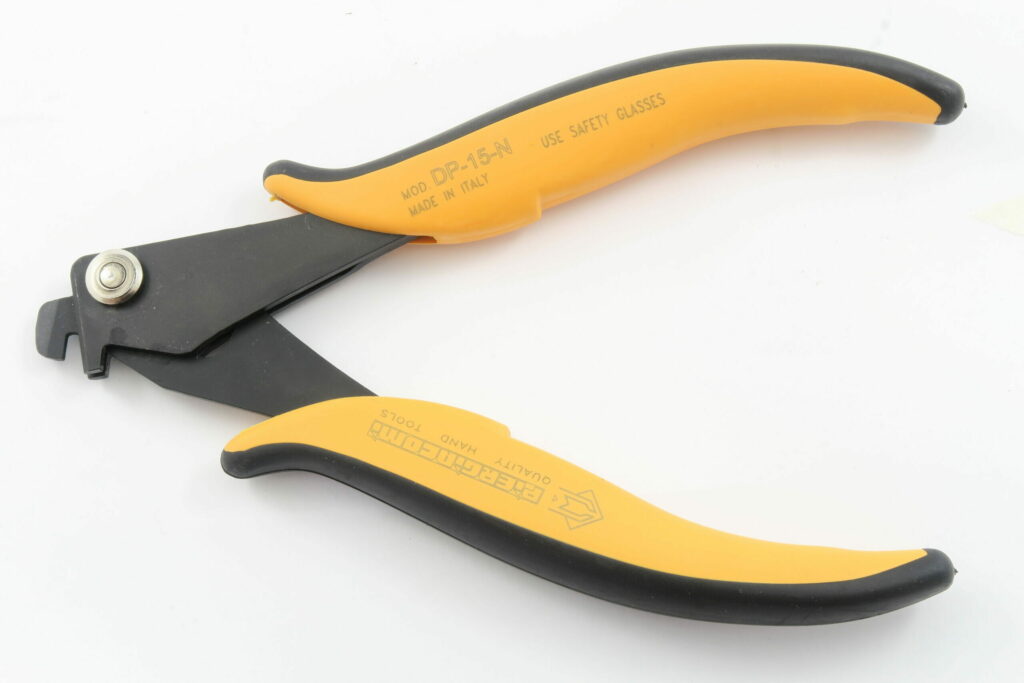

DP 15 N
DP 15 N D
3kg
1.5mm (.059”)
90g
147mm
DP 15 N
DP 15 N D
3kg
1.5mm (.059”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 3kg. – Blade thickness: 1.5mm

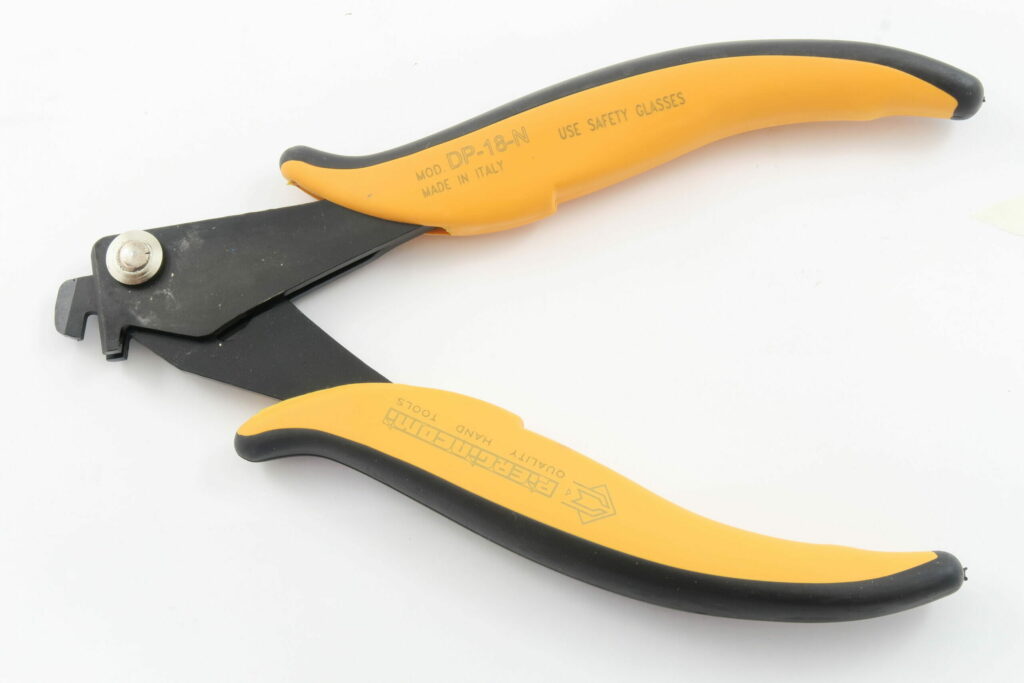

DP 18 N
DP 18 N D
3kg
1.8mm (.070”)
90g
147mm
DP 18 N
DP 18 N D
3kg
1.8mm (.070”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 3kg. – Blade thickness: 1.8mm

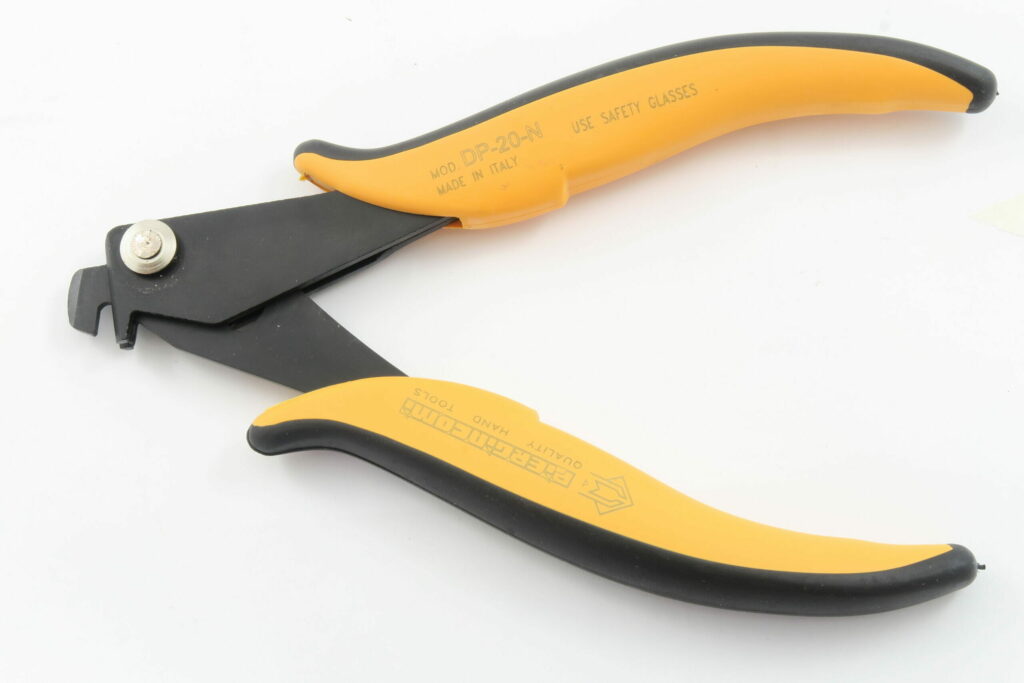

DP 20 N
DP 20 N D
3kg
blade 2.0mm (.078”)
90g
147mm
DP 20 N
DP 20 N D
3kg
blade 2.0mm (.078”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 3kg. – Blade thickness: 2.0mm

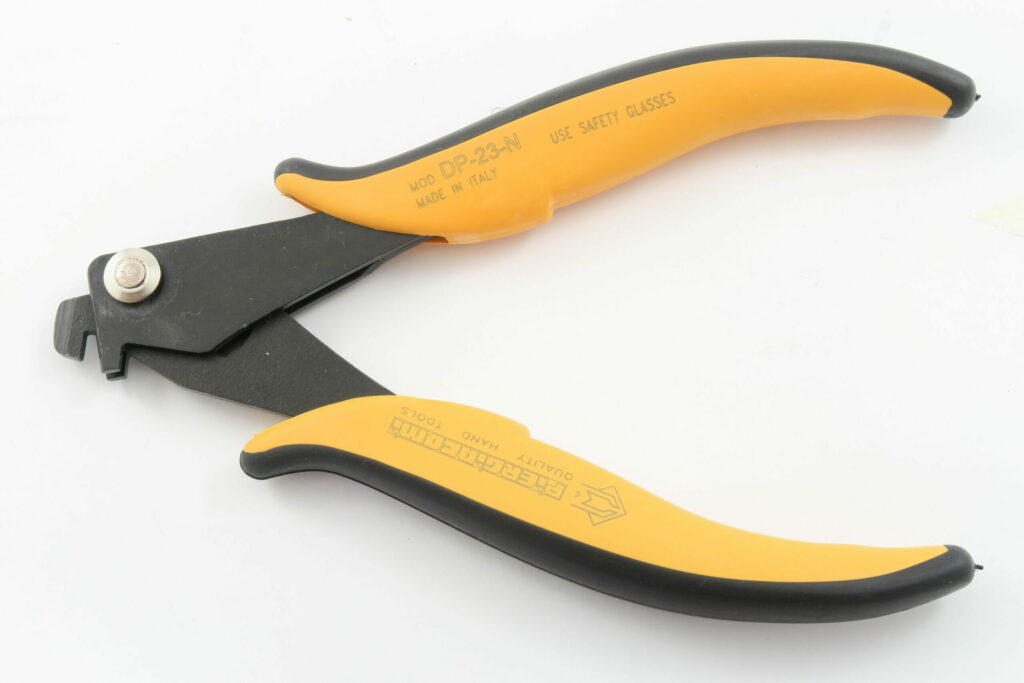

DP 23 N
DP 23 N D
7kg
blade 2.3mm (.090”)
90g
147mm
DP 23 N
DP 23 N D
7kg
blade 2.3mm (.090”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 7kg. – Blade thickness: 2.3mm

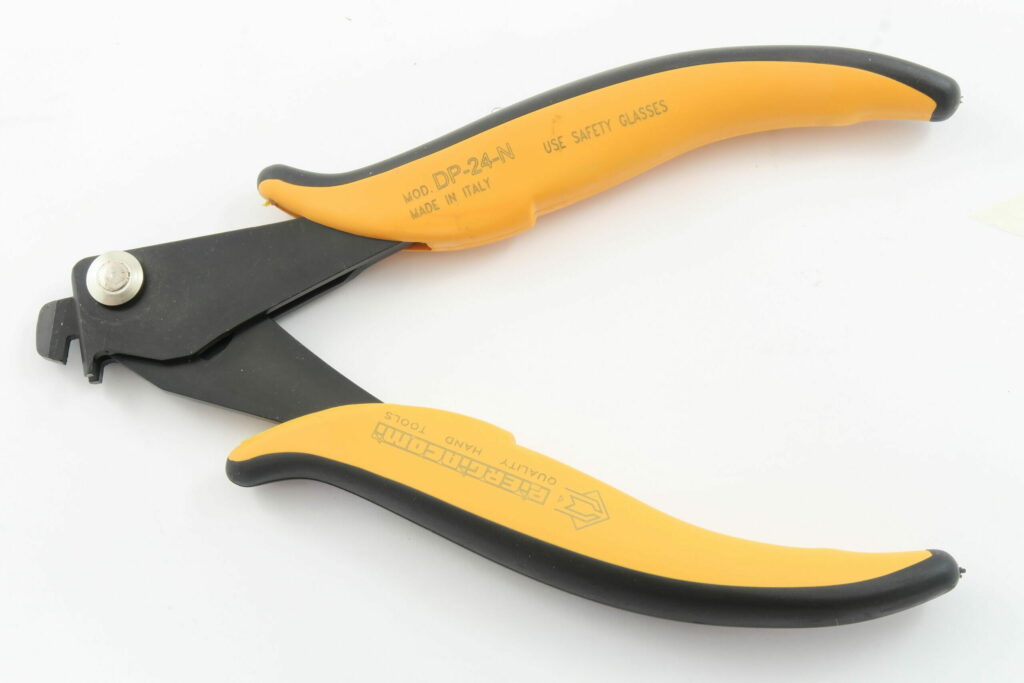

DP 24 N
DP 24 N D
7kg
blade 2.4mm (.094”)
90g
147mm
DP 24 N
DP 24 N D
7kg
blade 2.4mm (.094”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 7kg. – Blade thickness: 2.4mm

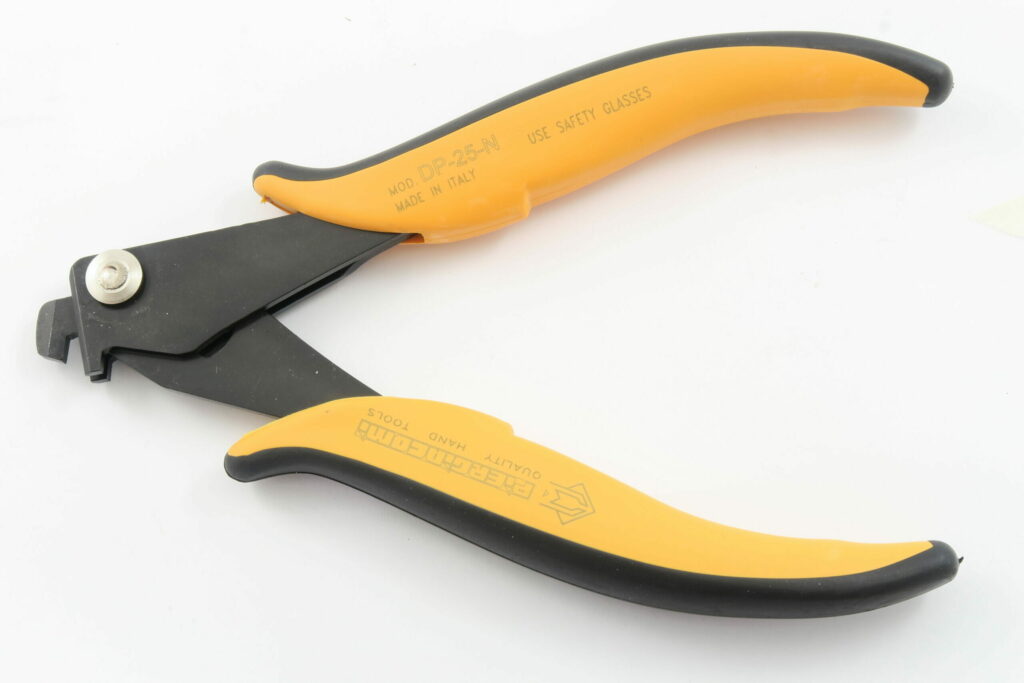

DP 25 N
DP 25 N D
7kg
blade 2.5mm (.098”)
90g
147mm
DP 25 N
DP 25 N D
7kg
blade 2.5mm (.098”)
90g
147mm
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces; the maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St. Also available in ESD-safe version.
TECHNICAL SPECIFICATIONS: – Maximum PCB thickness: 1.6mm – Minimum isthmus distance: 11mm – Maximum cutting force 7kg. – Blade thickness: 2.5mm
